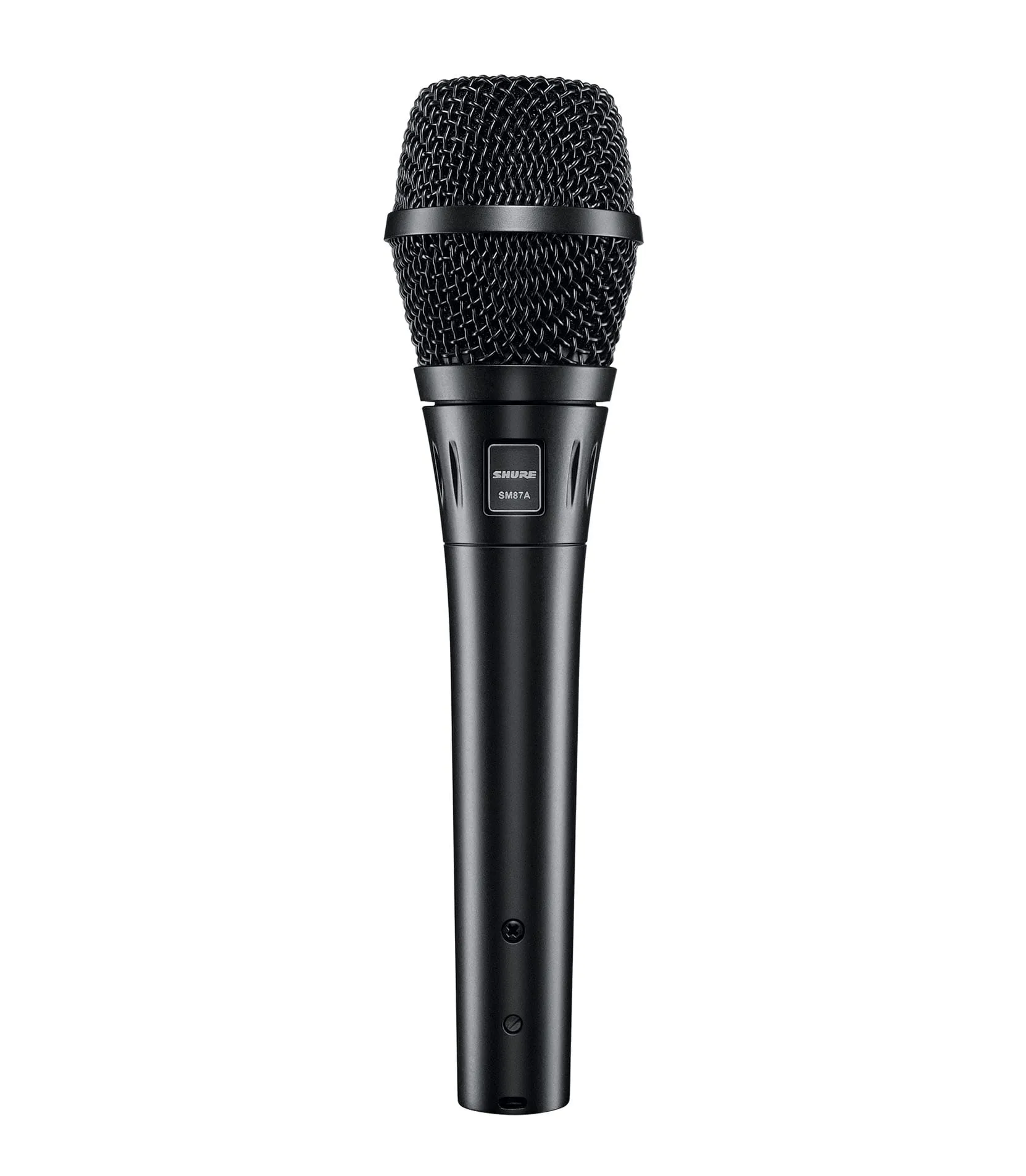

Sensitive condenser vocal microphone features a smooth, tailored response for a warm, accurate sound. The Shure SM87A-X microphone is a professional-quality, handheld condenser microphone for use in sound reinforcement, broadcasting, and studio recording installations.
Its supercardioid polar pattern provides greater rejection of unwanted sound sources, making it ideal for miking individual instruments in a multi-microphone setting or for miking single sources in a reverberant or noisy environment. An integral three-stage wind and pop filter protects against wind and breath noise. Its built-in shock mount reduces stand and handling noise.
Tech Specs
| Maximum SPL | (at 1,000 Hz) 140.5 dB (0.25% THD, 1000 ohm load) |
| Dynamic Range | (1000 ohms) 116.5 dB (maximum SPL to A-weighted noise level) |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 |
| Power Requirements | 11 to 52 vdc, 1.2 mA |
| Case | Aluminum construction with steel grille and satin black finish |
| Frequency Response | 50 to 20,000 Hz |
| Polar Pattern | Supercardioid |
| Sensitivity | (at 1,000 Hz) Open Circuit Voltage €“52.5 dBV/Pa (2.4 mV) (1 Pa = 94 dB SPL) |
| Impedance | Rated at 150 ohms (100 ohms actual ±20%) |
| Connector | Three-pin professional audio connector (male XLR type) |
| Net Weight | 200 grams (7 oz) |
